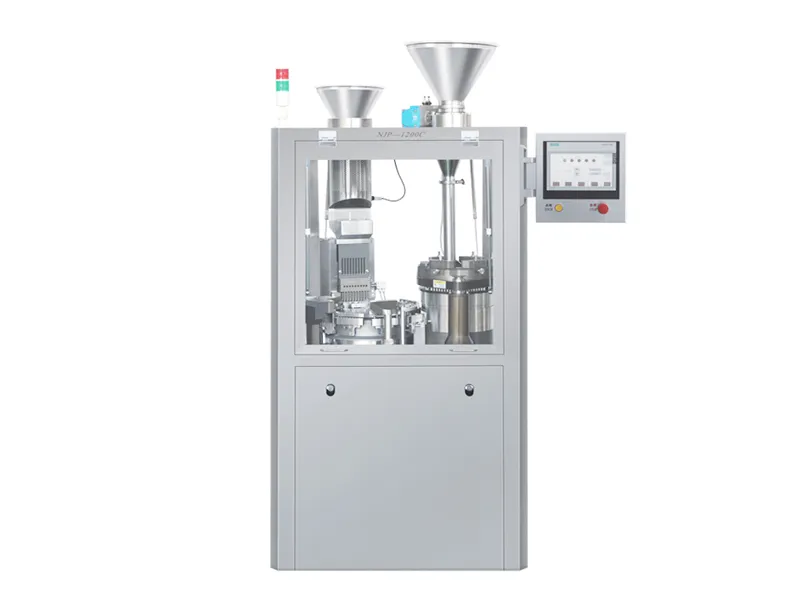

- Fully automatic capsule filling machine
Brand:Hi Now
Product origin:China
Delivery time:25 days
Options: automatic capsule and material feeding, pellet filling station,wet water pump, customized size, customized electrical configuration
Machine parameters
|
Model |
NJP-1200C |
|
Filling capacity |
72000pcs per hour |
|
Weight |
1000Kg |
|
Dimension |
1100×910×2100mm |
|
Power supply |
380/220V 50Hz |
|
Total power |
5.5KW |
|
Segment bores |
9 holes |
|
Vacuum |
40m3/h-0.04-0.08Mpa |
|
Dust collector |
24.5Kpa 210m3/h |
|
Air compression |
Air consumption 5m3/h Pressure 5-7Kg |
|
Water source |
500L/h 0.1-0.2Mpa |
|
Operating noise |
<75DB(A) |
|
Filling percentage |
Empty capsule 99.9% filled capsule 99.8% |
|
Capsule size |
00,0,1,2,3,4,5# |
|
Filling accuracy |
Western medicine ±3% Chinese medicine ±4% |
|
Suitable for |
Powder, Granule, Pellet, Tablet. |
With the development of the pharmacy machine’s technology, how to improve the automatization process of pharmacy machine and the efficiency of the produce become more and more urgent. In order to meet the requirements of the pharmacy machine’s development, we design and produce a fully enclosed automatic capsule-filling machine on the basis of the former NJP-series machine. This machine’s structure, power supply controlling, vacuum and aspirate system are all ameliorated innovatively. We can say it is really the most advanced machine in the pharmacy machinery producing line. Generally speaking, it is the machine which concentrating the structure, electric and air to a body.

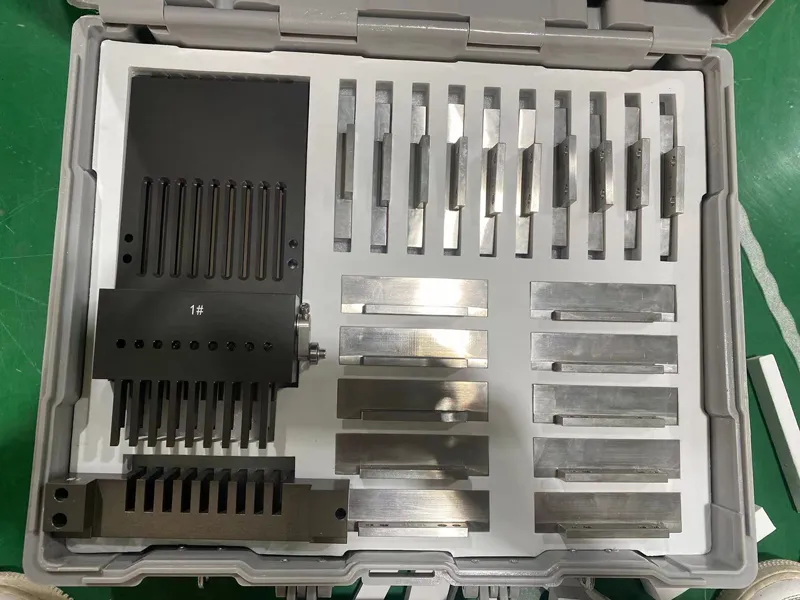

The machine equipped with the various segments for suitable capsules, namely 00#，0#, 1#, 2#, 3# and 4#.
The equipment design is fully in line with the requirements of CGMP and FDA specification.
